Bracket orders automation links a parent entry order to a take-profit and stop-loss so both exit orders go live the instant the entry fills, closing the gap where an unmonitored position sits exposed. The core mechanism is an OCO (one-cancels-other) or OSO (one-sends-other) relationship between parent and child orders. Reliability depends almost entirely on whether your platform or broker holds those brackets server-side or rebuilds them client-side after every fill.
TL;DR:
Server-held bracket orders provide more reliability during connectivity issues, as they operate independently of your local connection once placed.
Using
transmit=falseduring order submission prevents unlinked partial fills, ensuring brackets activate atomically and avoid exposure.Proper handling of callbacks like orderUpdate, executionUpdate, and positionUpdate is essential to prevent race conditions and keep order states synchronized.
Supporting multiple exit levels with an
exitLevelsarray adds flexibility but requires backward-compatible code adjustments if you switch from single to multi-tier brackets.Implementing thorough logging and real-time monitoring helps detect and address bracket automation failures, especially during high market volatility.
Table of Contents
What Are Bracket and OCO Orders in Trading?
A bracket order is really three orders acting as one unit: an entry, a take-profit, and a stop-loss. TradingView’s own documentation describes brackets as protecting a position by pairing a take-profit and stop-loss exit, both tied to the parent through parentId and parentType fields. Once the parent fills, the two exits activate as an OCO pair. Fill one, and the platform cancels the other automatically.
OSO (one-sends-other) is the mechanism that creates the bracket in the first place: the parent order’s fill event triggers the sending of both child orders. Once sent, those children behave as an OCO pair against each other.
A few terms you’ll see repeatedly across broker docs and Pine Script strategy code:
-
Parent order: the entry order (market or limit) that, once filled, triggers the bracket’s exit legs.
-
Child orders: the take-profit (usually a limit order) and stop-loss (a stop or stop-limit order) linked to that parent.
-
exitLevels: an array structure, used when a platform supports multiple exit tiers, that replaces a single flat takeProfit/stopLoss pair with several partial-exit levels.
-
Server-held bracket: a bracket object that lives on the broker’s servers, independent of your application staying connected.
-
Client-held bracket: a bracket your own software has to track and resend if the connection drops or the process restarts.
That last distinction is the one that actually determines whether your automation survives a bad network day. A server-held bracket order keeps working through a dropped connection because the exit logic lives with the broker, not with your local process. A client-held setup only exists as long as your script does.
How Does Bracket Automation Work in Practice?
The lifecycle behind a bracket order follows a predictable state machine, and understanding it is what separates code that works in testing from code that breaks in production. Here’s the sequence most broker APIs follow, adapted from patterns documented in the Interactive Brokers TWS API examples:
-
PreOrder validation. Your code checks margin, symbol tradability, and quantity before submission.
-
placeOrder call. The parent order and its child orders are submitted together, often in a single array, with children referencing the parent’s ID.
-
PlacedOrder state. The parent enters an active state (working, submitted, or pending, depending on the broker’s vocabulary) while children sit as Inactive.
-
Fill event. When the parent fills, its status changes to Filled and both children flip from Inactive to Working simultaneously.
-
OCO resolution. One child fills, the other cancels, and the position closes.
The fields you need to map correctly across this flow are unglamorous but unforgiving. parentId and parentType tell the child order which parent it belongs to and what kind of parent it is (a distinction that matters more once multiple exit levels are involved). qty on both children must match the parent’s filled quantity exactly, or you end up with orphaned size on one leg. limitPrice covers the take-profit leg; stopPrice (sometimes labeled auxPrice in older API conventions) covers the stop leg. exitLevelId becomes relevant only when multiple exit tiers are active.
Multiple exit levels change the shape of the data considerably. Instead of a flat takeProfit and stopLoss field on the order object, the Advanced Charts documentation describes an exitLevels array, where each entry carries its own exitLevelId, price, and quantity. If your codebase was built assuming single-level brackets, adding multi-level support requires backward-compatible handling. Older order objects should still resolve correctly even after you switch the schema.
| Callback | Fires when | What to update |
|---|---|---|
| orderUpdate | Order status changes (Working, Filled, Cancelled) | Local order state, UI display |
| executionUpdate | A fill (partial or full) executes | Filled quantity, average price, remaining size |
| positionUpdate | Net position size or average cost changes | Position ledger, exposure calculations |
These three callbacks rarely fire in a perfectly clean sequence. executionUpdate can arrive before orderUpdate confirms the new status, and positionUpdate sometimes lags both by a beat. Code that assumes strict ordering between these events is a common source of race conditions in bracket automation.
Connecting TradingView, Broker APIs, and Webhooks
TradingView’s Trading Terminal exposes three config flags that determine what bracket behavior is even possible on a given integration: supportOrderBrackets, supportMultipleExitLevels, and supportUnpairedExitLevels. Turning on supportOrderBrackets enables the basic take-profit/stop-loss pairing UI. supportMultipleExitLevels unlocks the exitLevels array structure described above, letting a trader scale out of a position at several price tiers instead of one. supportUnpairedExitLevels allows an exit level to exist without a matching opposite leg, useful for strategies that only want a stop with no fixed target, or vice versa.
The typical webhook-to-broker flow looks like this in production:
-
TradingView fires an alert with a JSON payload (symbol, side, quantity, price).
-
Your middleware normalizes the symbol format (TradingView’s
BINANCE:BTCUSDTisn’t always what your broker’s API expects) and generates a unique client order ID, often called acOIDin IBKR’s documentation. -
The middleware posts an order array to the broker’s REST endpoint, with child orders referencing the parent via
parentId. -
The broker responds with
local_order_idandorder_statusfor each leg, which you store for reconciliation.
Server-held brackets matter most right here. If the broker holds the bracket, a dropped WebSocket connection on your end doesn’t touch the live stop-loss sitting on their servers. Client-held brackets require your process to be alive and watching prices to trigger the exit, which means any outage is a real risk window.
One UI detail worth knowing if you’re building on top of TradingView’s charting library: dragging a take-profit or stop-loss line directly on the chart isn’t just a visual change. The platform translates that drag into an API call that modifies the underlying order object, which means your backend needs to handle order-modify events, not just order-create events.
Common Pitfalls That Break Bracket Reliability
Most bracket automation failures trace back to a small set of implementation mistakes, and nearly all of them show up during periods of high volatility, which is exactly when you can least afford them.
-
Getting the transmit flag wrong. Several broker APIs, including IBKR’s, let you build an order object without sending it live by setting
transmit=falseuntil the final order in the group. Skip this, and your first child order can go live on the exchange before the parent or sibling orders are linked, exposing you to an unbracketed position for however long that gap lasts. -
Mishandling partial fills. The Architect algos book describes a
trigger_in_proportionsetting that decides whether exit orders scale with each partial fill or wait until the entry fills completely. Pick one behavior deliberately. Defaulting to “wait for full fill” on an illiquid symbol can leave a chunk of your position unprotected for longer than expected. -
Ignoring callback timing requirements. Some platforms expect your system to acknowledge
positionUpdateorexecutionUpdatewithin a few seconds. Miss that window and you risk desynchronized state between your local order book and the broker’s. -
Not planning for simultaneous fills. It’s rare, but both exit legs can occasionally register a fill within the same tick during a fast-moving market. Your reconciliation logic needs a rule for this case, even if it’s just “flag for manual review and flatten the extra.”
-
Underestimating slippage asymmetry. Stop-loss orders typically execute as market orders once triggered, meaning they can fill at a materially worse price during a fast move. Take-profit orders are usually limit orders, so they fill at your price or not at all. Backtest and size positions with that asymmetry built in, not as an afterthought.
Pro Tip: Log every state transition (Inactive to Working to Filled) with a timestamp and the raw payload from the broker. When a bracket misfires, that log is the only way you’ll reconstruct whether the bug was in your code, a timing race, or the broker’s own latency.
How Should You Test and Monitor Bracket Automation?
Backtesting a bracket strategy without realistic fill assumptions is close to useless. Run your historical tests with slippage modeled on the stop-loss leg specifically, since that’s the leg most exposed to price gaps, and use limit-fill logic on the take-profit leg to avoid overstating win rates. From there, move to paper trading with the exact same code path your production system will use, not a simplified simulation branch, and only graduate to live trading with reduced position size once paper results match expectations over a meaningful number of trades.
Staging deserves its own step before full production. Shadow-trade your bracket logic against live market data without sending real orders, then replay your captured orderUpdate logs against what the broker actually reported for the same period. Any divergence there is a bug you want to find before real money is on the line.
Once live, a few monitoring habits catch problems before they compound:
-
Alert on any position with no matching bracket order, an orphan that’s easy to miss during a busy session.
-
Track quantity mismatches between filled entry size and exit order size.
-
Set a latency service-level objective for the time between entry fill and exit order activation, and alert when it’s breached.
-
Run a reconciliation cycle on a fixed schedule, not just on demand, comparing your local ledger against broker-reported positions.
Governance controls round this out. A daily notional size cap, an emergency pause switch that flattens or holds all bracket activity, and an audit log of every manual modification to a live bracket all reduce the blast radius when something does go wrong. The CFTC’s guidance on automated trading systems reinforces exactly this expectation: firms running algorithmic strategies are expected to maintain risk controls and oversight proportional to the system’s speed and autonomy, not just its profitability. If you want a broader framework for thinking about execution discipline before you even get to bracket mechanics, Tickerly’s guide on automating order execution covers the foundational risk controls worth having in place first.

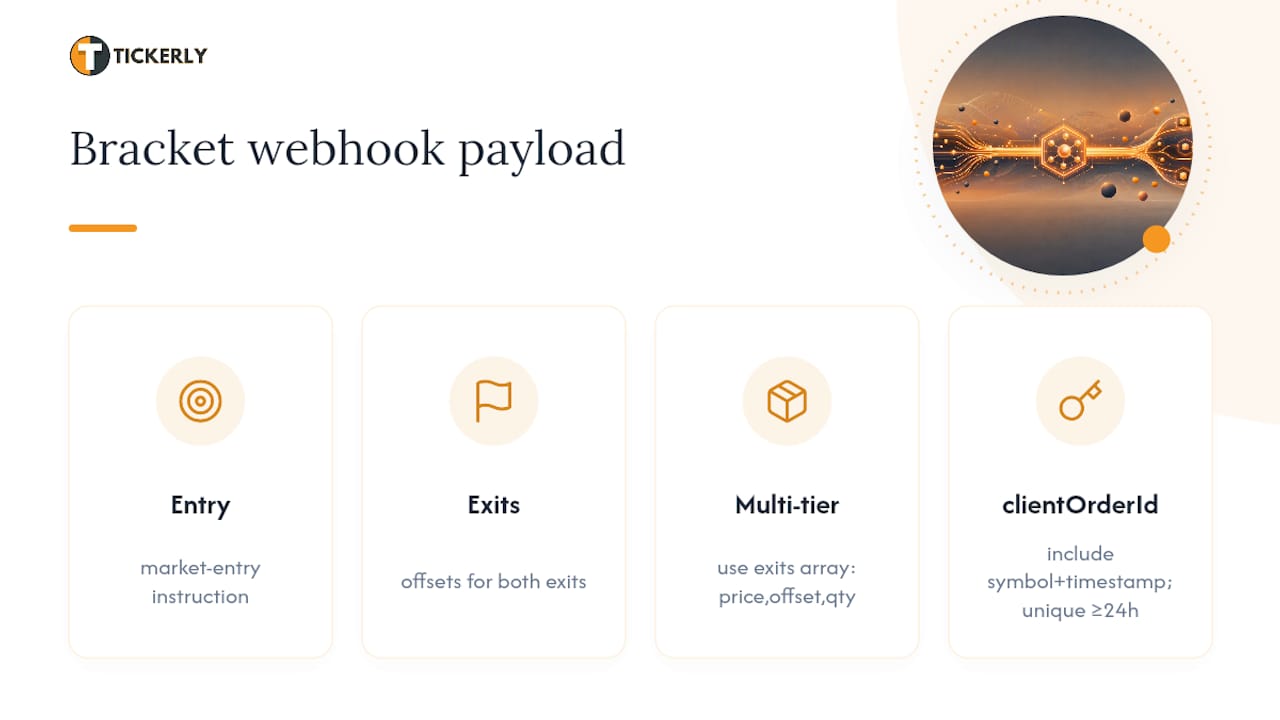

Sample TradingView Webhook Payload for Bracket Orders
A basic market-entry bracket webhook from TradingView typically carries the entry instruction plus offsets for both exits, which your middleware converts into absolute prices before hitting the broker’s API.
For multi-tier exits, replace the flat takeProfit/stopLoss fields with an exitLevels array, each entry carrying its own exitLevelId, offset, and partial quantity.
Pro Tip: Generate your clientOrderId with enough entropy to stay unique across at least a 24-hour span, including symbol and timestamp components. A collision on cOID is one of the quietest ways to silently drop or overwrite an order.
When Fixed Brackets Beat Dynamic Exit Management
Fixed brackets earn their place when speed and defined risk matter more than adaptability. A high-frequency entry with a known risk/reward ratio doesn’t need a human, or even a trailing algorithm, adjusting exits mid-trade. Trailing stops and programmatic exit management make more sense for adaptive strategies riding a trend, where a static stop leaves profit on the table. The real edge is execution speed on the fill-to-bracket handoff. That’s the exact window Tickerly’s sub-second alert-to-order latency claim is built to shrink.
— Jay
Automate Your Bracket Orders With Tickerly
Building your own webhook middleware to handle parentId linking, transmit flags, and exitLevels arrays is a real engineering project, not a weekend script. Tickerly gives Pine Script authors and TradingView users a no-code path to the same result: TradingView alerts convert directly into broker-ready bracket orders, with a trading service offering sub-second alert-to-order latency handling the fill-to-exit handoff that this guide just walked through.
Certain platforms support unlimited strategies and alerts across crypto, forex, and stocks, without requiring users to maintain their own reconciliation logic or worry about a dropped connection affecting stop-loss coverage, making tools like StockPilot valuable for income and growth-focused portfolio automation. If you’re weighing this against building it yourself, start with the free trial and pricing details, or check the full plan lineup if you’re running multiple strategies across several exchanges at once. Either way, the next step is the same: connect a TradingView alert and watch it become a live bracket order.
Where to Go for Primary Documentation
-
TradingView’s Advanced Charts documentation for exitLevels and bracket config flags.
-
IBKR’s Web API bracket order guide for REST payload structure and response fields.
-
The Architect algos book for partial-fill and trigger_in_proportion logic.
Sources
FAQ
What Does a Bracket Order Mean in Trading?
A bracket order is an entry order paired with a take-profit and stop-loss that activate automatically once the entry fills, forming an OCO relationship between the two exits.
What Is the Difference Between a Cover Order and a Bracket Order?
A cover order pairs an entry with a single mandatory stop-loss and no separate take-profit target, while a bracket order includes both a take-profit and a stop-loss linked as an OCO pair.
Which Brokers Allow Bracket Orders?
Most major brokers with algorithmic trading APIs, including Interactive Brokers, support bracket orders natively through parent/child order linking, and platforms like Tickerly let TradingView users route brackets to supported exchanges without writing that integration code themselves.
Is a Bracket Order the Same as an OCO Order?
Not exactly: OCO describes the cancel-on-fill relationship between the two exit legs, while a bracket order is the full structure that includes the entry order plus that OCO exit pair.
Do Bracket Orders Work if My Connection Drops?
Only if they’re server-held. A server-held bracket keeps running on the broker’s infrastructure through a disconnect, while a client-held bracket depends on your own software staying online to manage the exits.
